D9T Track-Type Tractor Power Train – Track Roller Frame – Assemble

Assembly Procedure

Table 1
Required Tools
Tool     Part Number     Description     Qty
C     5P-4758     Retaining Ring Pliers As     1
E     6V-9061     Pump Group     1
6V-3175 Double Acting Cylinder     1
5P-4776 Tool Stud     2
3K-5234 Hard Washer     2
6V-4871 Reaction Bar  (1)     1
F     5P-3931     Anti-Seize Compound     –
( 1 ) 6V-2166 (Plate) can be used if 6V-4871 (Reaction Bar) is unavailable.

------ WARNING! ------

When you are using hydraulic cylinders and puller studs, always ensure that the rated capacity of the puller stud meets or exceeds the rated capacity of the hydraulic cylinder. If the puller stud does not meet or exceed the rated capacity of the hydraulic cylinder, a sudden failure of the puller stud could occur. The sudden failure of the puller stud could result in personal injury or death.

----------------------


NOTICE

Do not use threaded rods that have not been hardened as tooling with hydraulic cylinders. The maximum rated tonnage should be stamped on one end of the puller studs. Do not use threaded rods that have not been stamped with the rated tonnage.


  1. Install the recoil spring. Refer to Disassembly and Assembly, “Recoil Spring – Install”.
  1. Install the track adjuster. Refer to Disassembly and Assembly, “Track Adjuster – Install”.
  1. Install the front track roller frame. Refer to Disassembly and Assembly, “Front Track Roller Frame – Install”.



    Illustration 1 g00831827

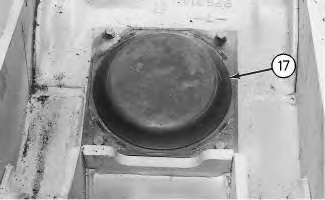

  1. Install pad assemblies (17) on the track roller frame and the major bogies.



    Illustration 2 g00831825

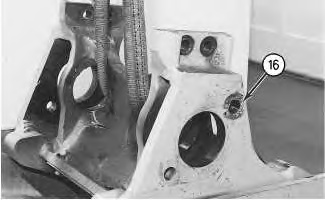

  1. Attach a suitable lifting device to major bogie (16) . Position major bogie (16) in the track roller frame. The weight of major bogie (16) is approximately 316 kg (697 lb).
  1. Apply Tooling (F) on the bores of major bogie (16) and the track roller frame.



    Illustration 3 g01096541





    Illustration 4 g00831823

    Note: If the original cartridge pins are used again, fill the pins with 60 ± 3 cc (2.03 ± 1 oz) of SAE 90W oil. Rubber stoppers (13) must be installed 3.00 ± 1.00 mm (0.118 ± 0.039 inch) below the surface of the pin.


    NOTICE

    The end of the cartridge pin with the punch mark must be toward the outside of the roller frame. The punch mark must be on top or bottom of the vertical centerline of the bore.

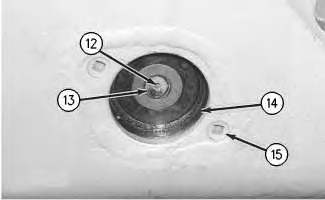

  1. Install all rubber stoppers (13) in cartridge pins (14) on a flat surface. Stoppers (13) must be installed 3.00 ± 1.00 mm (0.118 ± 0.039 inch) below the surface of the pin.
  1. Slide the cartridge pin (14) in both sides of the roller frame.

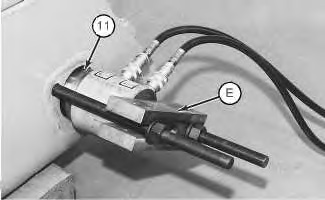

  1. Position plate (11) and Tooling (E) . Ensure that the step on plate (11) is toward Tooling (E) . Install the cartridge in the major bogie until plate (11) is even with the groove in the track roller frame.
  1. Remove plate (11) and Tooling (C) . Fill the cartridge pins with 60 ± 3 cc (2.03 ± 1 oz) of SAE 90W oil. Install plugs (12) .
  1. Install plugs (15) .



    Illustration 5 g00832266

  1. Install plate (11) .

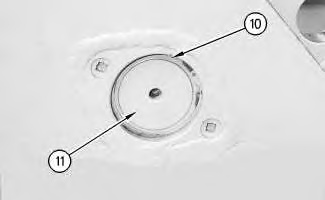

  1. Install retaining ring (10) with Tooling (C) .



    Illustration 6 g00832289

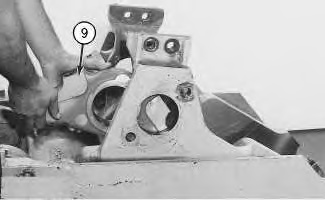

    Note: The minor bogie (9) must be installed with the part number or the words THIS SIDE OUT toward the outside of the major bogie.

  1. Put minor bogie (9) in position in the major bogie.



    Illustration 7 g01096544

  1. Apply Tooling (F) on the bores of the major bogie and the minor bogie before installation of the cartridge pin.


    NOTICE

    The end of the cartridge pin with the punch mark must be toward the outside of the roller frame. The punch mark must be on top or bottom of the vertical centerline of the bore.

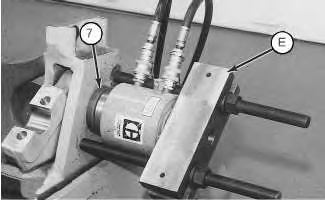

  1. Slide cartridge pin (7) in the major bogie and the minor bogie. Use Tooling (E) and install cartridge pin (7) even with the outside surface of the major bogie.

  1. Fill the cartridge and install the plug.



    Illustration 8 g01087328

  1. Install track guides (4) on the major bogies. Tighten bolts (5) that hold track guides (4) . Refer to Table 2 for torque specification.

    Table 2
    Part Number     Part Description     Torque
    8C-6857     Bolt 3/4-10     475 ± 50 N·m (350± 37 lb ft)
    7X-0386     Bolt 7/8-9     750 ± 80 N·m (553 ± 59 lb ft)

  1. Install cover (5A) .



    Illustration 9 g01116794

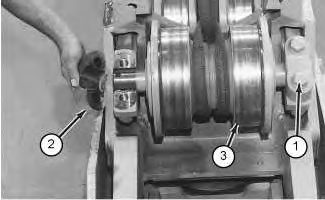

  1. Attach a suitable lifting device to track rollers (3) . The weight of the single flange is approximately 105 kg (232 lb). The weight of the double flange is approximately 111 kg (245 lb). Position track rollers (3) .
  1. Install the track rollers in the following order.

    • single flange

    • single flange

    • double flange

    • double flange

    • double flange

    • double flange

    • single flange

    • single flange

    Make an alignment of the holes in the shafts with the dowels in the caps. Position caps (2) and install bolts (1) that hold caps (2) to the minor bogies. Tighten bolts (1) to a torque of 750 ± 70 N·m (550 ± 50 lb ft).

End By:

  1. Install the idlers. Refer to Disassembly and Assembly, “Idler – Install”.
  2. Install the track roller frames. Refer to Disassembly and Assembly, “Track Roller Frame – Install”.
