D9T Track-Type Tractor Hydraulic System – Torque Converter – Disassemble

Disassembly Procedure

Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     1U-9200     Lever Puller Hoist     1
B     138-7575     Link Bracket     8
C     138-7574     Link Bracket     3
D     138-7573     Link Bracket     5
E     5B-4274     Bolt     2
F     1P-0520     Driver Gp     1
G     8B-7559     Adapter     2
8B-7550 Push-Puller Leg     2
3H-0465 Push-Puller Plate     4
1P-5546 Crossarm     1
5P-8715 Forcing Bolt     1
6B-6682 Full Nut     2
H     1U-9478     Nut     1
257-5128 Fixture     1
260-0626 Spanner Wrench As     1
6V-6080 Torque Multiplier Gp     1
J     8B-7551     Puller Assembly     1

Start By:

  1. Remove the torque converter. Refer to Disassembly and Assembly, “Torque Converter – Remove”.

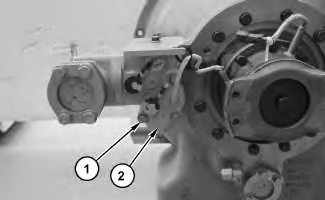

    Illustration 1 g01092983

  1. Remove bolts (1) and relief valve (2) .

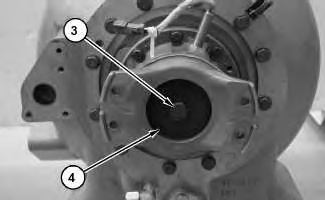

    Illustration 2 g01092984

  1. Remove bolt (3) and retainer (4) .

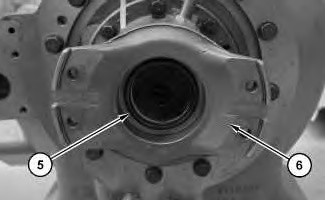

    Illustration 3 g01092985

  1. Remove O-ring seal (5) and yoke assembly (6) .

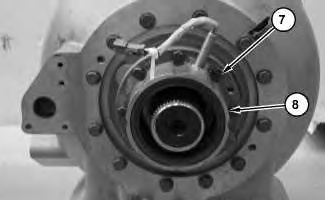

    Illustration 4 g01092986

  1. Remove bolts (7) in order to remove bearing retainer (8) .

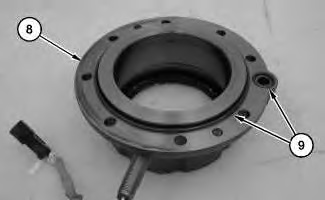

    Illustration 5 g01092988

  1. Remove O-ring seals (9) from bearing retainer (8) .

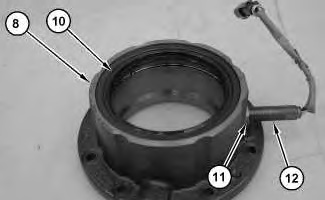

    Illustration 6 g01092989

  1. Remove seal (10) from bearing retainer (8) .
  1. Loosen nut (11) .
  1. Remove speed sensor (12) from bearing retainer (8) .

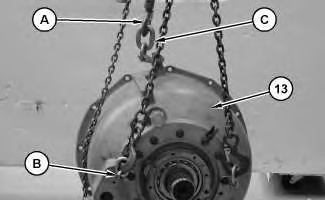

    Illustration 7 g01092991

  1. Attach Tooling (A) , Tooling (B) , Tooling (C) , and a suitable lifting device to torque converter cover (13) .
  1. Invert the torque converter. The weight of the torque converter is approximately 340 kg (750 lb).
  1. Remove Tooling (A) and Tooling (C) .

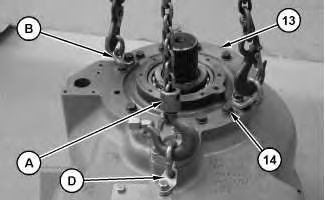

    Illustration 8 g01092992

  1. Attach Tooling (A) , Tooling (D) , and a suitable lifting device to torque converter (13) .
  1. Remove bolts (14) and torque converter cover (13) . The weight of the torque converter cover is approximately 125 kg (275 lb).

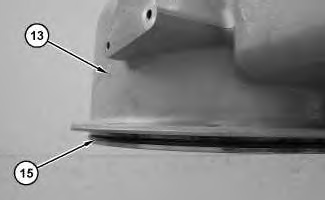

    Illustration 9 g01092993

  1. Remove O-ring seal (15) from torque converter cover (13) .

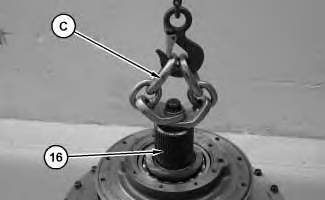

    Illustration 10 g01092996

  1. Attach Tooling (C) and a suitable lifting device to output shaft (16) .
  1. Remove output shaft (16) .
